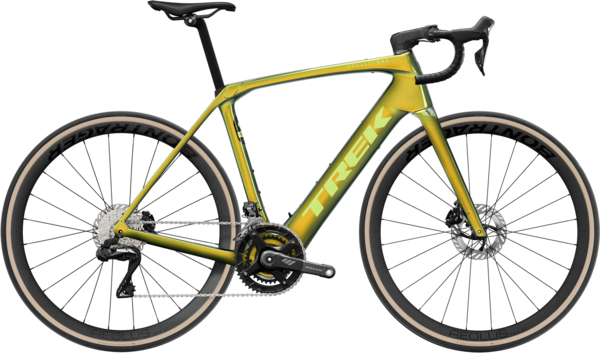

Trek Domane+ SLR 7
$9,899.99
$10,999.99
Details
Domane+ SLR 7 is a category-redefining carbon e-road bike. It's built on an 800 Series OCLV Carbon frame that hides a compact and refined motor to elevate your ride. It quietly blends in with the elements, so you stay more connected to the ride while enjoying extra power on steep climbs and long miles. To top it all off, you get smooth shifting from an electronic Shimano Ultegra Di2 2x12 drivetrain and carbon Aeolus Pro 37 wheels.
| Frame size number | 50 cm | 52 cm | 54 cm | 56 cm | 58 cm | 60 cm | 62 cm |
|---|---|---|---|---|---|---|---|
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| A — Seat tube | 45 | 47.5 | 50 | 52.5 | 54.8 | 56.7 | 58.6 |
| B — Seat tube angle | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° | 72.5° |
| C — Head tube length | 13 | 14.5 | 16 | 17.5 | 19.5 | 22 | 24.5 |
| D — Head angle | 71.1° | 71.3° | 71.3° | 71.9° | 72.0° | 72.1° | 72.1° |
| E — Effective top tube | 51.9 | 53 | 54.2 | 55.4 | 56.7 | 57.9 | 59.3 |
| G — Bottom bracket drop | 8 | 8 | 8 | 7.8 | 7.8 | 7.5 | 7.5 |
| H — Chainstay length | 43 | 43 | 43 | 43 | 43 | 43 | 43 |
| I — Offset | 5.3 | 5.3 | 5.3 | 4.8 | 4.8 | 4.8 | 4.8 |
| J — Trail | 6.3 | 6.2 | 6.2 | 6.3 | 6.3 | 6.2 | 6.2 |
| K — Wheelbase | 100.7 | 101.3 | 102.1 | 101.8 | 102.7 | 103.7 | 104.7 |
| L — Standover | 72.8 | 74.7 | 76.6 | 78.8 | 80.8 | 82.9 | 84.7 |
| M — Frame reach | 36.8 | 37.1 | 37.4 | 37.7 | 38 | 38.3 | 38.6 |
| N — Frame stack | 54.6 | 56.1 | 57.5 | 59.1 | 61.1 | 63.2 | 65.6 |
| Stem length | 80 | 90 | 90 | 100 | 100 | 110 | 110 |
| Saddle rail height min (w/short mast) | 58.5 | 61.5 | 64 | 67 | 69 | 71 | 73 |
| Saddle rail height max (w/short mast) | 65 | 68 | 70.5 | 73.5 | 75.5 | 77.5 | 79.5 |
| Saddle rail height min (w/tall mast) | 61.5 | 64.5 | 67 | 70 | 72 | 74 | 76 |
| Saddle rail height max (w/tall mast) | 68 | 71 | 73.5 | 76.5 | 78.5 | 80.5 | 82.5 |
| Size | Rider Height | Inseam |
|---|---|---|
| 50 | 158 - 163 cm 5'2" - 5'4" |
74 - 77 cm 29" - 30" |
| 52 | 163 - 168 cm 5'4" - 5'6" |
76 - 79 cm 30" - 31" |
| 54 | 168 - 174 cm 5'6" - 5'9" |
78 - 82 cm 31" - 32" |
| 56 | 174 - 180 cm 5'9" - 5'11" |
81 - 85 cm 32" - 33" |
| 58 | 180 - 185 cm 5'11" - 6'1" |
84 - 87 cm 33" - 34" |
| 60 | 185 - 190 cm 6'1" - 6'3" |
86 - 90 cm 34" - 35" |
| 62 | 190 - 195 cm 6'3" - 6'5" |
89 - 92 cm 35" - 36" |
Specs
| Frame | 800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, fender mounts, 142x12mm thru axle |
|---|---|
| Fork | Domane+ carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Wheels | Front Wheel: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle/Rear Wheel: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 142x12mm thru axle |
| Rims | Bontrager TLR |
| Tires | Bontrager Kwaremont RSL, tubeless ready, folding bead, dual compound, 320 tpi, 700x32mm |
| Crankset | Size: 50, 52 Praxis Carbon, 165mm length/Size: 56, 54 Praxis Carbon, 170mm length/Size: 58, 60, 62 Praxis Carbon, 172.5mm length |
| Chainrings | Praxis, 50/34T, 12 speed |
| Shifters | Shimano Ultegra R8170 Di2, 12 speed |
| Front Derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
| Rear Derailleur | Shimano Ultegra R8150 Di2, 34T max cog |
| Cassette/Freewheel | Shimano Ultegra R8101, 11-34, 12 speed |
| Chain | Shimano Ultegra/XT M8100, 12 speed |
| Brakes | Shimano Ultegra hydraulic disc, flat mount |
| Rotors | Shimano CL800, centerlock, 160mm |
| Handlebars | Size: 50, 52 Bontrager Pro IsoCore VR-SF, 40cm/Size: 56, 54 Bontrager Pro IsoCore VR-SF, 42cm/Size: 58, 60, 62 Bontrager Pro IsoCore VR-SF, 44cm |
| Tape/Grips | Trek EcoTack |
| Stem | Trek RCS Pro, -7 degree |
| Seatpost | Size: 56, 50, 52, 54 KVF aero carbon seatpost, 20mm offset, 280mm length/Size: 58, 60, 62 KVF aero carbon seatpost, 20mm offset, 320mm length |
| Saddle | Verse Short Pro, carbon rails, 145mm width |
| Motor | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
| Battery | TQ 360Wh |
| Controller/Display | TQ LED display with Bluetooth & ANT+ connectivity |
| Charger | TQ 4A charger |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Gecko Phaze / 50cm / 700c | 197216256670 | 5339502 |
| Gecko Phaze / 52cm / 700c | 197216256687 | 5339503 |
| Gecko Phaze / 54cm / 700c | 197216256694 | 5339504 |
| Gecko Phaze / 56cm / 700c | 197216256700 | 5339505 |
| Gecko Phaze / 58cm / 700c | 197216256717 | 5339506 |
| Gecko Phaze / 60cm / 700c | 197216256724 | 5339507 |
| Gecko Phaze / 62cm / 700c | 197216256731 | 5339508 |
| Metallic Red Smoke/Red Carbon Smoke / 50cm / 700c | 197216256748 | 5339509 |
| Metallic Red Smoke/Red Carbon Smoke / 52cm / 700c | 197216256755 | 5339510 |
| Metallic Red Smoke/Red Carbon Smoke / 54cm / 700c | 197216256762 | 5339511 |
| Metallic Red Smoke/Red Carbon Smoke / 56cm / 700c | 197216256779 | 5339512 |
| Metallic Red Smoke/Red Carbon Smoke / 58cm / 700c | 197216256786 | 5339513 |
| Metallic Red Smoke/Red Carbon Smoke / 60cm / 700c | 197216256793 | 5339514 |
| Metallic Red Smoke/Red Carbon Smoke / 62cm / 700c | 197216256809 | 5339515 |
| Era White/Supernova Marble / 50cm / 700c | 197216256601 | 5339495 |
| Era White/Supernova Marble / 52cm / 700c | 197216256618 | 5339496 |
| Era White/Supernova Marble / 54cm / 700c | 197216256625 | 5339497 |
| Era White/Supernova Marble / 56cm / 700c | 197216256632 | 5339498 |
| Era White/Supernova Marble / 58cm / 700c | 197216256649 | 5339499 |
| Era White/Supernova Marble / 60cm / 700c | 197216256656 | 5339500 |
| Era White/Supernova Marble / 62cm / 700c | 197216256663 | 5339501 |
| Matte Deep Smoke / 50cm / 700c | 197216256533 | 5339488 |
| Matte Deep Smoke / 52cm / 700c | 197216256540 | 5339489 |
| Matte Deep Smoke / 54cm / 700c | 197216256557 | 5339490 |
| Matte Deep Smoke / 56cm / 700c | 197216256564 | 5339491 |
| Matte Deep Smoke / 58cm / 700c | 197216256571 | 5339492 |
| Matte Deep Smoke / 60cm / 700c | 197216256588 | 5339493 |
| Matte Deep Smoke / 62cm / 700c | 197216256595 | 5339494 |
